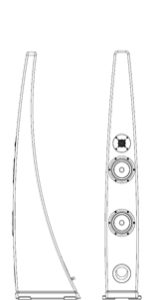

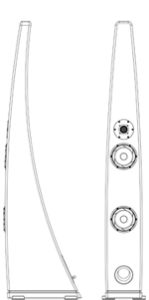

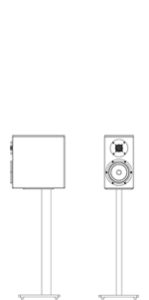

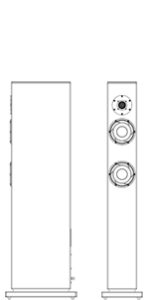

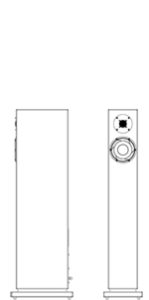

MUTINE EX HEFA DEFINE HEFA ILLUMINE HEFA RECITAL ICONE RECITAL AIR
DIMENSIONS 290x164x290mm 1057x164x290mm 1200x164x330mm 1339x186x361mm 1540x220x400mm
BASE SUPPORT – Black 200x298mm Black 200x338mm US walnut 186x361mm US walnut 220x400mm
WEIGHT (PAIR) 14.5kg 38.5kg 51kg 35kg 45kg
CONFIGURATION 2 ways, bass-reflex 2 ways, bass-reflex 2.5 ways, bass-reflex 2.5 ways, bass-reflex 2.5 ways, bass-reflex
WOOFER – – 15cm, 104cm², long throw, aluminium cone 15cm, 75cm², long throw, aluminium cone 15cm, 94cm², long throw, magnesium cone
MID WOOFER 15cm, 75cm², long throw, magnesium cone 15cm, 104cm², long throw, aluminium cone 15cm, 104cm², long throw, aluminium cone 15cm, 75cm², long throw, aluminium cone 15cm, 94cm², long throw, magnesium cone
TWEETER Diameter : 19mm Diameter : 26mm Diameter : 26mm Diameter : 19mm Diameter : 29mm
CROSSOVER 12-12dB/oct 1250Hz 6-6dB/oct 1500Hz 12-12-24dB/oct 280Hz and 1600Hz 6-12-12dB/oct 360Hz and 1600Hz 12-12-24dB/oct 330Hz and 1500Hz
NOM IMPEDANCE 8 ohms 8 ohms 4 ohms 4 ohms 4 ohms
RATED POWER 60 watts 80 watts 160 watts 160 watts 160 watts
BANDWIDTH 50Hz – 30kHz (-3dB) 30Hz – 25kHz (-3dB) 30Hz – 25kHz (-3dB) 45Hz – 25kHz (-3dB) 35Hz – 25kHz (-3dB)
SENSIBILITY 85dB/2.83V 85dB/2.83V 89dB/2.83V 89dB/2.83V 89dB/2.83V
